Applicators
Please select the item you want to learn more about :

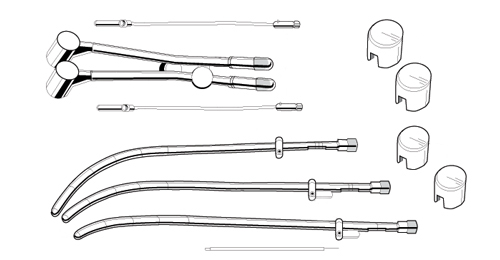

Round-Handle Fletcher-Suit-Delclos Applicator Set (640R)
Part # 5005-0082
Set contains :
- 3 Central Tandems
- 3 Cervical Stops (1 with flag, 2 without flag)
- 3 Plastic Tandems and Pushers
- 1 Storage/Sterilization Tray (not shown)
- 1 Pair of Colpostat
- 2 Bucket Type Source Carriers
- 1 Pair of Nylon Caps, 2.5cm Diameter, for Ovoids
- 1 Pair of Nylon Caps, 3.0cm Diameter, for Ovoids
- 1 Allen Wrench
CAUTION : This product should be carefully inspected by your staff prior to clinical use and should be used by authorized personnel only.

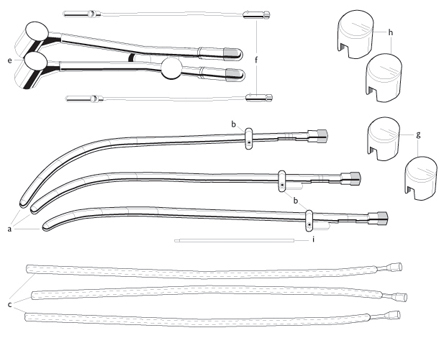

Round-Handle Fletcher-Suit-Delclos Applicator with Bracket (640RB)
Part # 5005-0083
Set contains :
- 3 Central Tandems
- 3 Cervical Stops (1 with flag, 2 without flag)
- 3 Plastic Tandems and Pushers
- 2 Allen Wrenches
- 1 Storage/Sterilization Tray (not shown)
- 1 Pair of Colpostat with Bracket (to hold central tandem along with colpostat and also to separate the ovoids)
- 1 Pair of Bucket Type Source Carriers
- 1 Pair of Nylon Caps, 2.5cm Diameter, for Ovoids
- 1 Pair of Nylon Caps, 3.0cm Diameter, for Ovoids
CAUTION : This product should be carefully inspected by your staff prior to clinical use and should be used by authorized personnel only.

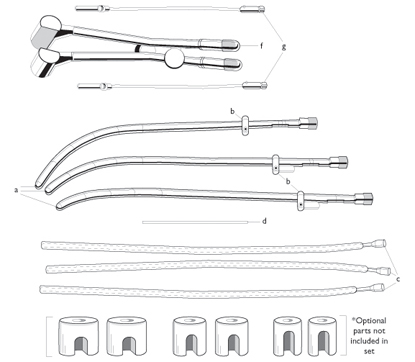

Fletcher-Suit-Delclos Mini-Ovoid Applicator Set (640M)
Part # 5005-0084
Set contains :
- 3 Central Tandems
- 3 Cervical Stops (1 with flag, 2 without flag)
- 3 Plastic Tandems and Pushers
- 1 Allen Wrench
- 1 Storage/Sterilization Tray (not shown)
- 1 Pair of Colpostat
- 2 Bucket Type Source Carriers
*Optional : Shielded Caps 2cm, 2.5cm & 3cm diameters
CAUTION : This product should be carefully inspected by your staff prior to clinical use and should be used by authorized personnel only.

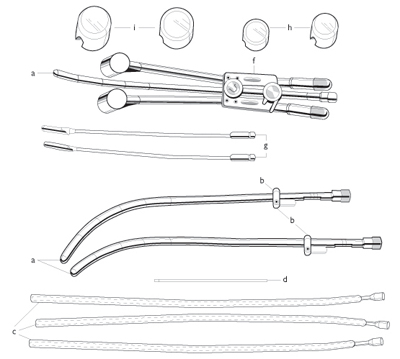

Delclos Mini-Ovoid Applicator Set with Bracket Assembly (640MRB)
Part # 5005-0085
Set contains :
- 3 Central Tandems
- 3 Cervical Stops (1 with flag, 2 without flag)
- 3 Plastic Tandems and Pushers
- 2 Allen Wrenches
- 1 Storage/Sterilization Tray (not shown)
- 1 Pair of Colpostat with Bracket
- 2 Bucket Type Source Carriers
*Optional : Shielded Caps 2cm, 2.5cm & 3cm diameters
CAUTION : This product should be carefully inspected by your staff prior to clinical use and should be used by authorized personnel only.

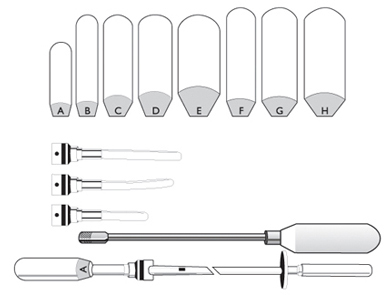

Burnette Afterloading Vaginal Applicator (700A)
Part # 5005-0088
Each Set contains :
- Eight nylon cylinders (A to H)
- Four plastic tandems with metal screws and special long handle (cap holder)
- Tube Source Adapter Assembly
- All arranged in a stainless steel tray
External Dimensions of Cylinders
A 20 x 66 mm
B 20 x 87 mm
C 25 x 87 mm
D 30 x 87 mm
E 35 x 87 mm
F 25 x 95 mm
G 30 x 95 mm
H 35 x 95 mm
CAUTION : This product should be carefully inspected by your staff prior to clinical use and should be used by authorized personnel only.
Delclos Uterine/Vaginal Afterloading Applicator & Dome Assembly (670)
Part # 5005-0089
Set contains :
- 6 Sets of Cylinders with Diameters 20mm, 25mm, 30mm, 35mm, 40mm and 45mm
- 6 Domes (matching cylinder diameters)
- 3 Uterine Tandems
- 1 Vaginal Tandem (dome assembly)
- 1 Vaginal Tandem (with a flat end)
- 1 Storage/Sterilization Tray
- 1 Standard Allen Wrench
- 1 Extended Allen Wrench
- 1 Cylinder Extractor
- 1 Cervical Stop
- 4 Plastic Tandems and Pushers
CAUTION : This product should be carefully inspected by your staff prior to clinical use and should be used by authorized personnel only.
Dummy Sources (cesium)
Part # 513-1 - 4 Cesium Dummy Sources Arranged in a Plastic Tube
These are Dummy Tungsten Sources with a length of 20mm and a diameter of 3mm to simulate Cesium sources, arranged with 20mm long spacers in a plastic tube so as to load conveniently in a central tandem. Because of the high density of Tungsten a better Radiograph is obtained. Custom arrangements of these sources are available.
Part # 513-2
Instead of total length of 20mm, active length of 14mm also could be used for loading in plastic tube. Custom arrangements of these are available.
Also Available:
Cesium Dummy Sources for 3M Sources (Part # 513)
Cesium Dummy Sources for Amersham Sources (Part # 696)
Other Custom Loadings Available
Mick 200-TPV Applicator Kit
Part # 5005-9707
Each Set contains :
| Item Description | Part # |
|---|---|
| 1 Mick 200-TPV Applicator (instrument only) | 5005-9701-1 |
| 8 Mick TP Needles, 17 or 18 Gauge "Authentic" (carton) | 5005-MTP-17/1820-C |
| 1 Diddler (needle adjustment tool) | 5002-0010 |
| 1 Seed Loading V-Block with Seed Gauge | 5005-7509 |
| 1 Pushwire Rod Assembly (spare) | 5005-9707-PRA |
| 1 Practice Phantom with 100 Dummy Seeds | 5005-8113-PIP |
| 2 Reverse Action Tweezers | 5005-0009 |
| 1 Loop Wire, 22 cm (needle cleaning device) | 5005-7702 |
| 1 Stainless Steel Ruler, 15 cm | 5005-7610 |
| 1 Stainless Steel Screwdriver / Allen Wrench Combo | 5005-7311-C |
| 1 Sterilization & Storage Cassette | 5005-0505 |
| 1 Instruction Manual | 405-06 |
Steerable "Authentic" Mick TP Needles!
Circumvent pubic arch interference with the use of the Mick Needle Former.
Optional Instrumentation and Accessories
| Product | Part # |
|---|---|
| Reverse Action Tweezer | 5005-0009 |
| Diddler (needle adjustment tool) | 5005-0010 |
| Transperineal Template-Transparent, 17 Gauge | 5005-8813-17 |
| Transperineal Template-Transparent, 18 Gauge | 5005-8813-18 |
| Mick Needle Former (steerable Mick needles) | 5005-0226 |
| V-Block (cartridge seed-loading device) | 5005-7509 |
| Stainless Steel Sterilization Tray with Instrument Holder | 5005-7308-STI |
| Wooden Carrying Case | 5005-7611 |
| Morgenstern Stabilizing Needle, 18 Gauge | 10207 |
| Practice Phantom with 100 Dummy Seeds | 5005-8113-PIP |
| KGM Passer (radiation shielding device) | 5005-9512 |
| Inspector (radiation survey meter) | 5005-963-ERAD |
| Springs (for Magazines) | 5005-9609-SP |
| E-Rings (for Magazines) | 5005-9609-E |
| Product | Part # |
|---|---|
| Prostate Phantom, CIRS | 5005-9603-53 |
| Mick Magazine, Reusable (10 seed capacity) | 5005-7609 |
| Mick Magazine, Disposable (15 seed capacity) | 10113-7 |
| Mick TP Needle, 18 Gauge "Authentic" | 10209-25 |
| Mick TP Needle, 17 Gauge "Authentic" | 10203-25 |
| Pushwire Rod Assembly (Mick 200-TPV spplicator) | 5005-9707-PRA |
| Stainless Steel Allen Wrench / Screwdriver Combination | 5005-7311-C |
| Brachystand 6 Ultra for Use with E & K or Siemens Stepper | 5005-1000 |
| Sure-Point I (floor mount with Siemens stepper) | 5005-FMS |
| Sure-Point II (table mount with Siemens stepper) | 5005-UTMS |
| Disposable Templates, B & K | 1830 |
| Loaded Gloves – Radiation Attenuation Gloves | 5005-5327005 |
| Ultrasonic Cleaner with Timer and Heater | 5005-7908-10TH |
| Stainless Steel Dummy Seeds | 5005-8212-DS |
New!
Please select the item you want to learn more about :

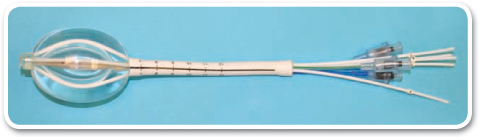

Breast Balloon Applicator
The Best Double-Balloon Breast Brachytherapy Applicator utilizes an outer balloon to expand within and shape the resection cavity, and an inner balloon which expands independently of the outer balloon. This allows physicians to position 4 treatment catheters within the outer balloon, optimizing both dose conformality and homogeneity.
- Improved dose distribution and conformality
- Less dose to critical organs such as skin, lung, heart, chest wall, etc.
- Convenient to use
- U.S. F.D.A. 510(k) registered
