Multileaf Collimators
Gammabeam™ Multileaf Collimator 60
The Original Radiotherapy Shielding Block Mold Cutter

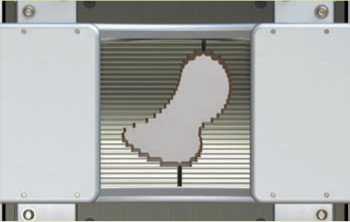

A Multileaf Collimator is now available as an optional accessory for the Equinox™ product line, providing 3D Conformal Radiation Therapy (3D CRT) and Intensity Modulated Radiation Therapy (IMRT) capability.
The Best Theratronics Multileaf Collimator 60 (MLC 60) is custom designed for seamless integration with the Equinox 100 therapy machine. The Equinox™ MLC 60 system is the most advanced Cobalt Teletherapy system available.
Cobalt-60 is widely used for conventional RT in most of the world, but has lacked the required technical research and development to facilitate IMRT/IGRT…
UNTIL NOW!
Specifications
| Number of leaves | 60 |
| Maximum field size | 30 x 30 cm |
| Leaf width at isocenter | 10 mm |
| Leaf over-travel distance | 75 mm |
| Leaf interdigitation | Yes |
| Maximum projected leaf speed | 18 mm/s |
| Focused leaves | Yes |
| Leaf material | Tungsten |
| Inter-leaf leakage | < 2.0% |
| Patient clearance (from isocenter) | 40 cm |
| Two independent position sensors per leaf | Yes |
| Integrated Safety Interlocks | Yes |
| MLC Console Software | Yes |
| Record and verify | Yes |
| Patient Database | Yes |
| DICOM-RT compatible | Yes |
| Removable MLC for standard Equinox operation | Yes |
